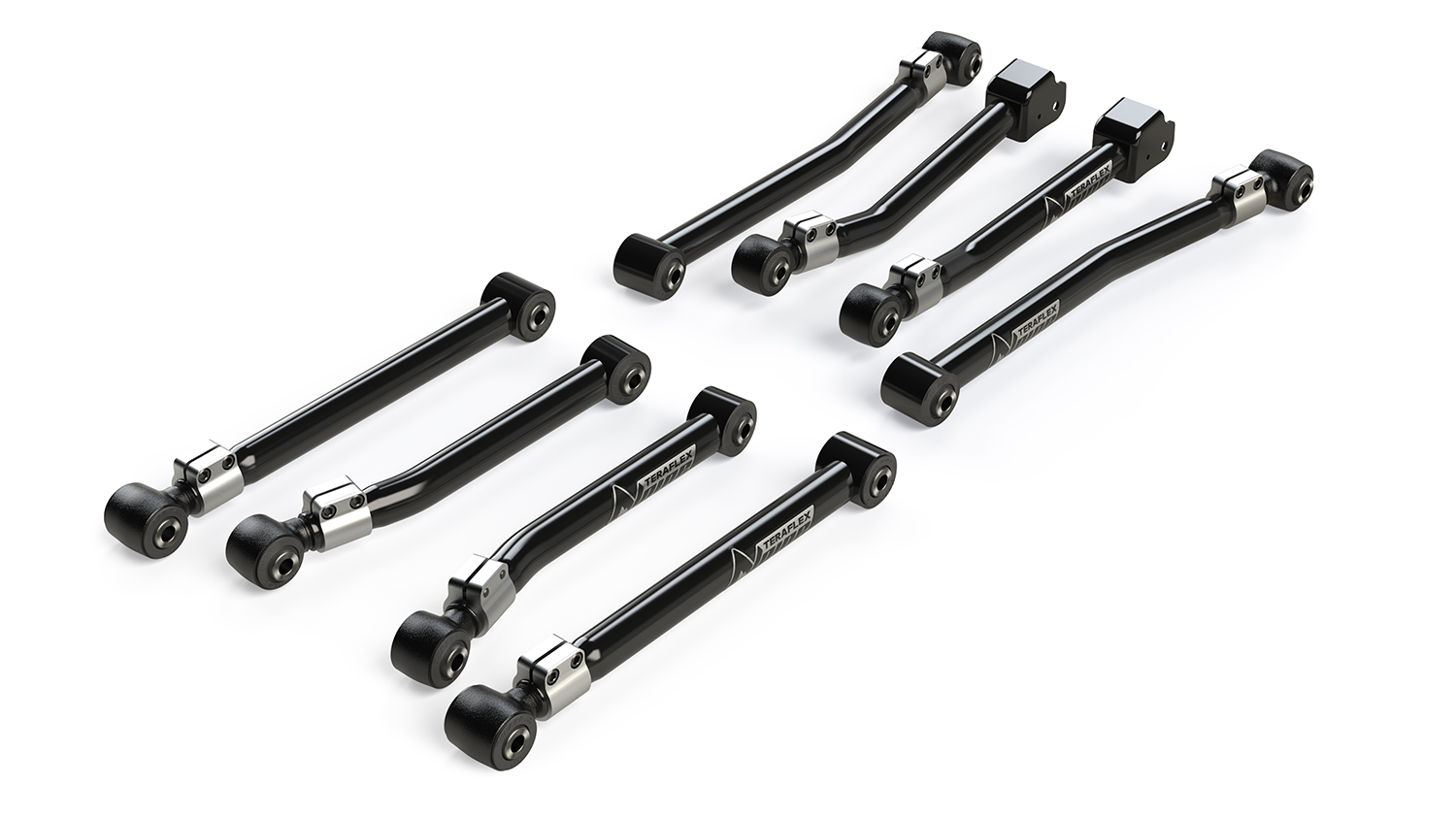

TeraFlex JL: Alpine Short Arms provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 0-4,5 Inch Lifts, Bolts to the factory control arm mounting brackets,
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality,
Can be added to any existing suspension lift,
Includes:
- Alpine Short Arm Pairs:
- Arm Pair – Front Upper (# 1416520)
- Arm Pair – Front Lower (# 1416500)
- Arm Pair – Rear Upper (# 1416560)
- Arm Pair – Rear Lower (# 1416540)
Fitment:
- JL Wrangler (2-door)
- JL Wrangler Unlimited (4-door)
Specs:
- Lift Height: 0-4,5 Inch
Control Arm Specs:
- JL / JT: Alpine Short Arm Pair – Front Upper (# 1416520):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 20,185 Inch
- Min, Length: 20 Inch
- Max, Length: 21 Inch
- Bolt – Both: 12mm
- Bushing – Axle: OEM
- Bushing – Frame: # 611014
- JL / JT: Alpine Short Arm Pair – Front Lower (# 1416500):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 24 Inch
- Min, Length: 24 Inch
- Max, Length: 25-1/4 Inch
- Bolt – Both: 16mm
- Bushing – Both: # 09-01-201-001
- JL: Alpine Short Arm Pair – Rear Upper (# 1416560):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 17,425 Inch
- Min, Length: 17-3/8 Inch
- Max, Length: 18-1/2 Inch
- Bolt – Both: 14mm
- Bushing – Both: # 611012
- JL: Alpine Short Arm Pair – Rear Lower (# 1416540):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 19-3/4 Inch
- Min, Length: 19-13/16 Inch
- Max, Length: 21-1/16 Inch
- Bolt – Both: 14mm
- Bushing – Both: # 611011
