TeraFlex JK: Alpine Long Arms and Long Arm Brackets) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts,
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality,
CAD-engineered TeraFlex JK: Long Arm Brackets are designed for maximum strength, By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance,
Can be added to any existing suspension lift,

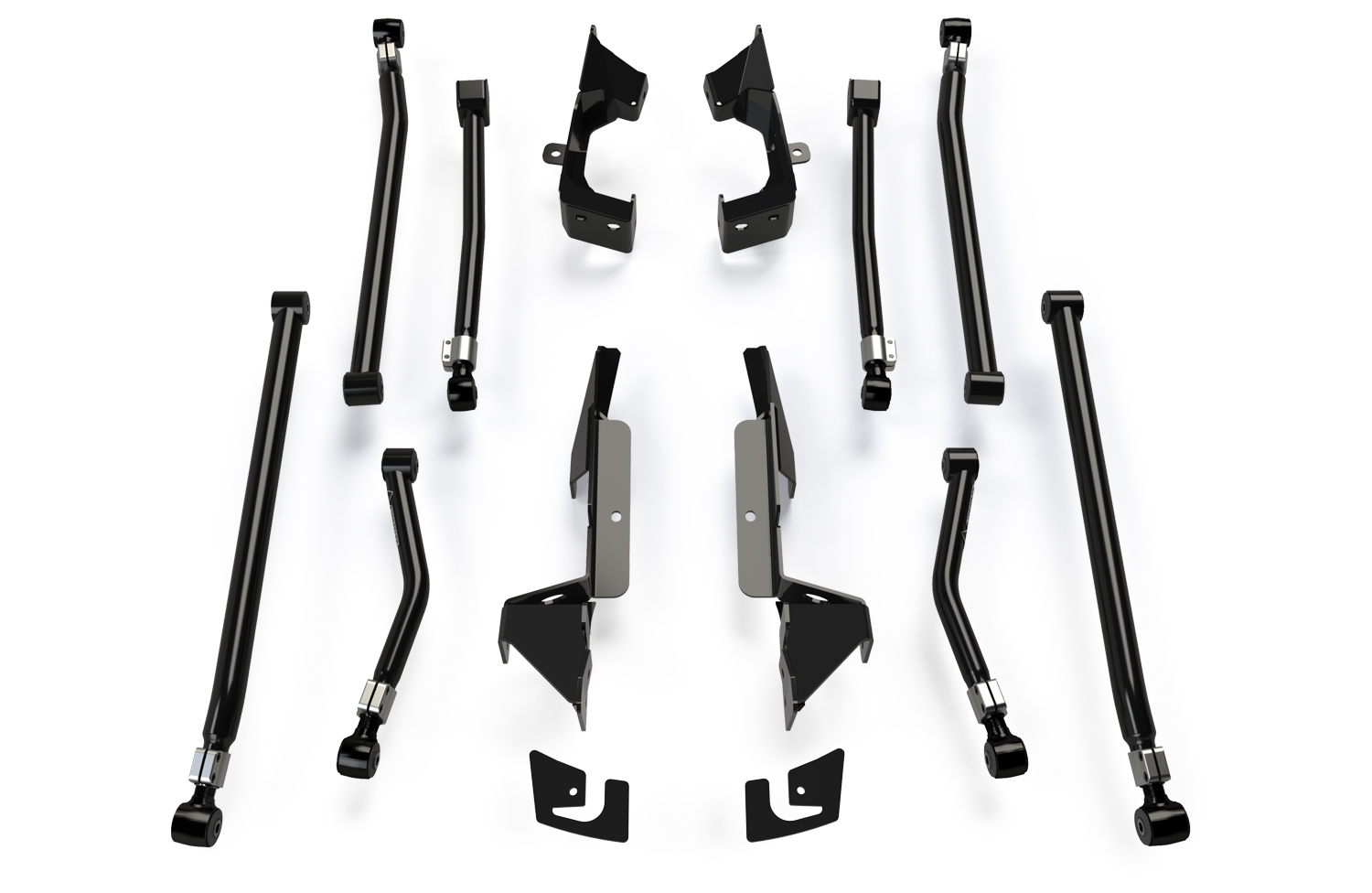

Includes:
- Alpine Long Arm Kit – 8-Arm (# 1315000):
- Arm Pair – Front Upper (# 1315520)
- Arm Pair – Front Lower (# 1315500)
- Arm Pair – Rear Upper (# 1315560)
- Arm Pair – Rear Lower (# 1315540)
- Long Arm Bracket Kit (# 1957000):
- Brackets – Front
- Brackets – Rear
- Gussets – Rear
- All necessary hardware
Fitment:
- JK Wrangler (2-door)
- JK Wrangler Unlimited (4-door)
Specs:
- Lift Height: 3-6 Inch
Control Arm Specs:
- JK: Alpine Long Arm Pair – Front Upper (# 1315520):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 18-3/4 Inch
- Min, Length: 27-3/8 Inch
- Max, Length: 28-7/8 Inch
- Bolt – Axle: 12mm
- Bolt – Frame: 14mm
- Bushing – Axle: OEM
- Bushing – Frame: 611013
- JK: Alpine Long Arm Pair – Front Lower (# 1315500):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 22-5/8 Inch
- Min, Length: 33-3/4 Inch
- Max, Length: 35-1/4 Inch
- Bolt – Both: 14mm
- Bushing – Both: 611011
- JK: Alpine Long Arm Pair – Rear Upper (# 1315560):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 17-7/16 Inch
- Min, Length: 20 Inch
- Max, Length: 21-1/2 Inch
- Bolt – Both: 14mm
- Bushing – Both: 611012
- JK: Alpine Long Arm Pair – Rear Lower (# 1315540):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 19-3/4 Inch
- Min, Length: 35-3/4 Inch
- Max, Length: 37-1/4 Inch
- Bolt – Both: 14mm
- Bushing – Both: 611011
