TeraFlex JL: Alpine IR Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3-6 Inch Lifts,
Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance,
CAD-engineered TeraFlex JL: Long Arm Brackets are designed for maximum strength, By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance, Front Long Arm Suspension Crossmember provides additional strength, Can be added to any existing suspension lift,

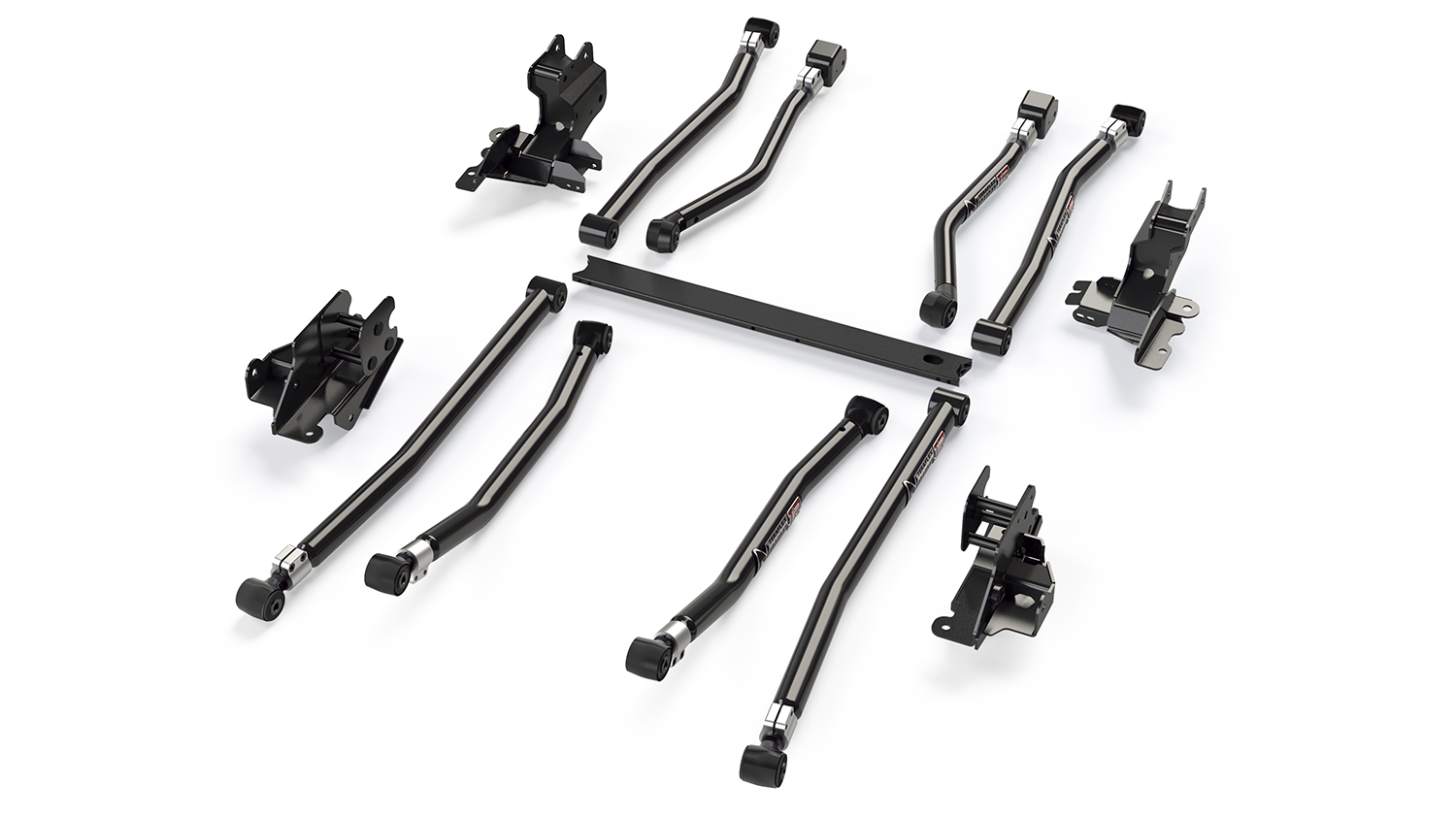

Includes:
- Alpine IR Long Arm Kit – 8-Arm (# 1310505):
- Arm Pair – Front Upper (# 1310520)
- Arm Pair – Front Lower (# 1310500)
- Arm Pair – Rear Upper (# 1310560)
- Arm Pair – Rear Lower (# 1310540)
- Long Arm Bracket Kit (# 1958002):
- Brackets – Front
- Brackets – Rear
- Suspension Crossmember – Front
- All necessary hardware
Fitment:
- JL Wrangler (2-door)
Specs:
- Lift Height: 3-6 Inch
Control Arm Specs:
- JL / JT: Alpine IR Long Arm Pair – Front Upper (# 1310520):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 20-1/4 Inch
- Min, Length: 27-3/4 Inch
- Max, Length: 28-7/8 Inch
- Bolt – Axle: 12mm
- Bolt – Frame: 14mm
- IR Bushing – Axle: 611018
- IR Bushing – Frame: 611016
- JL / JT: Alpine IR Long Arm Pair – Front Lower (# 1310500):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 24 Inch
- Min, Length: 30-7/8 Inch
- Max, Length: 32 Inch
- Bolt – Both: 16mm
- IR Bushing – Both: 611020
- JL: Alpine IR Long Arm Pair – Rear Upper (# 1310560):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 17-3/8 Inch
- Min, Length: 32-3/4 Inch
- Max, Length: 33-3/4 Inch
- Bolt – Both: 14mm
- IR Bushing – Axle: 611015
- IR Bushing – Frame: 611016
- JL: Alpine IR Long Arm Pair – Rear Lower (# 1310540):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 19-3/4 Inch
- Min, Length: 36-1/4 Inch
- Max, Length: 37-3/8 Inch
- Bolt – Both: 14mm
- IR Bushing – Both: 611015
